Supply Ability : 500 SETS per Month
Material : PE100
Model Number : Anti-Monsoon
MOQ : 5
Delivery Time : 30 working days
Payment Terms : T/T
Price : 4000
Certification : ISO9001:2008
Brand Name : Nanfengwang
Place of Origin : City of Dongguan China
Packaging Details : knock-down packing
|
Items
|
Specification
|
|
Main Float Pipe
|
Φ 250mm OD × 11.9mm wall thickness SDR21
|
|
Handrail Pipe
|
Φ 110mm × 10mm SDR11(thickened)
|
|
Bracket
|
Simplified single-post
|
|
Frame Material
|
High-density PE100 pipe, Anti-aging and UV-resistant
|
|
Buoyancy System
|
Integrated high-buoyancy PE float modules. Suitable for 6m to 15m water depth in lakes and reservoirs
|
|
Anti-wave Grade
|
Designed for significant wave heights up to 3m, class 10 monsoon resistant, suitable for most Lake areas
|
|

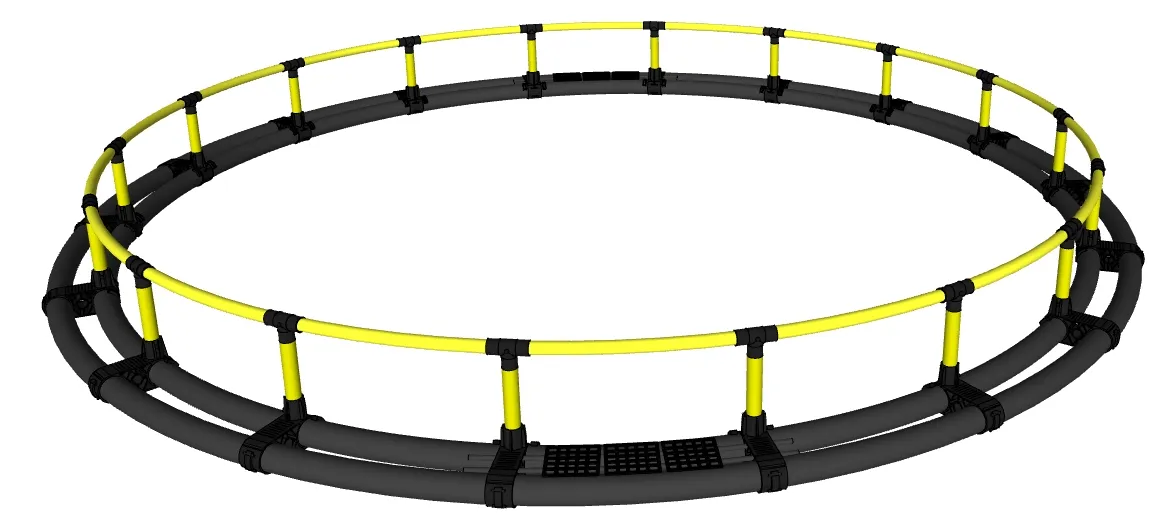

Design Drawing
|
See pictures below
|
|
Unit Price (EXW Dongguan China)
|
USD 4000/ unit
|
|
MOQ
|
5 unit (available for trial)
|
|
Lead Time
|
7–10 working days after deposit
|
|
Feature
|
15m HDPE Circular Cage
|
Traditional Galvanized Steel Cage
|
|
Initial Framework Cost
|
Around $4,000 USD Only
|
Significantly higher total budget needed to build 14 separate units
|
|
Total Farming Water Volume
|
~1,060 m³ (Spacious, all-in-one modern aquaculture system)
|
~1,050 m³ (Split into 14 separate, cramped boxes)
|
|
Single Cage Specification
|
Diameter: 15m (Net Depth: 6m)
|
5m × 5m (Net Depth: 3m)
|
|
Lifespan & Maintenance
|
15 - 25 Years (Premium high-density material, ultra-long anti-aging life)
|
1 - 3 Years (Welds crack under waves, metal rusts quickly, oil drums leak constantly)
|
|
Labor & Management Cost
|
Ultra-Low (1 feeding zone, simple 1-net cleanup, highly efficient)
|
High (Workers must row between 14 separate nets to clean and feed)
|
|
Site Adaptability
|
Deep Waters, Open Sea, Lakes & Reservoirs (High oxygen exchange, faster fish growth)
|
Shallow Near-Shore Stagnant Waters (High risk of mass mortality due to low oxygen)
|
|
|
Leave old, rusty farming methods in the past. Step into tomorrow with advanced HDPE fish cage technology Images |
